Product range
Six grades, one spectrum.
Every FCP grade sits at a defined position on the particle-size spectrum below — from ultrafine sintering powder to broad press-and-sinter granulate. Several grades' cuts overlap, so each gets its own row. Select a grade to jump to its datasheet.
Need a cut outside these six? We also classify to custom particle-size fractions on request.

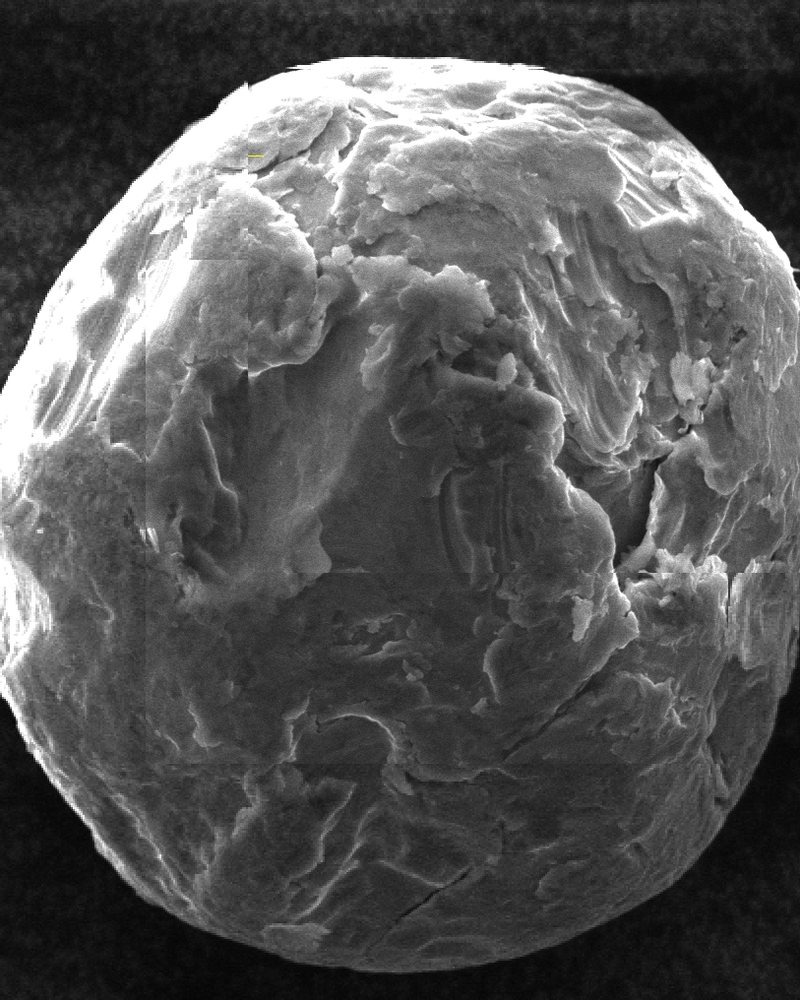

FCP-20
Ultrafine powder for sinter-active electronics.
FCP-20 is classified below 20 µm for maximum specific surface area, giving it high sinter activity in conductive pastes, contacts and fine sintered structures.
Applications: Electronics, sintered contacts, conductive pastes
| Particle size | <20 µm |
|---|---|
| Sphericity | >0.9 |
| Specific surface | High (BET) |
| Tap density | ~3.8 g/cm³ |
| Copper content | >99.9% |
| Feedstock | 100% recycled |

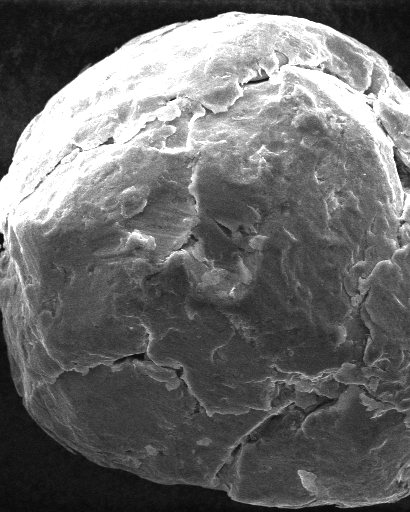

FCP-BJ
Fine spherical powder for binder jetting.
Classified for consistent recoating and high green density in binder-jet printing, FCP-BJ supports fine feature resolution ahead of the sintering step to full density.
Applications: Binder jetting, complex geometries, batch AM production
| Particle size | 20–45 µm |
|---|---|
| Sphericity | >0.9 |
| Flowability (Hall) | ~16 s/50 g |
| Apparent density | ~4.5 g/cm³ |
| Copper content | >99.9% |
| Feedstock | 100% recycled |

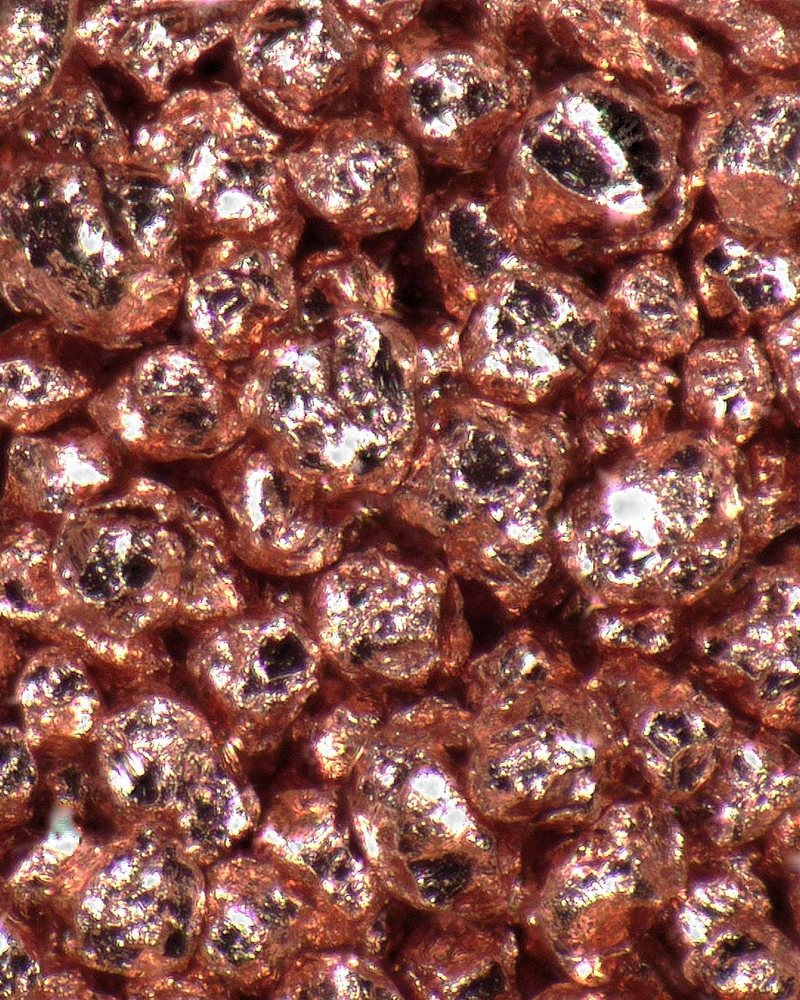

FCP-AM
Spherical powder built for laser processing.
Spheroidal and free-flowing, FCP-AM is tailored to laser powder bed fusion and directed energy deposition. Its rough surface absorbs about twice as much 1070 nm laser light as gas-atomised powder, which widens the process window on standard infrared machines.
Applications: LPBF of pure-copper parts, DED, high-conductivity components
| Particle size | 20–63 µm |
|---|---|
| Sphericity | >0.9 |
| Apparent density | ~4.0 g/cm³ |
| Tap density | ~4.8 g/cm³ |
| Flowability (Hall) | ~14 s/50 g |
| Copper content | >99.9% |
| Oxygen content | ≤400 ppm |
| Laser absorption (1070 nm) | ~2× gas-atomised |
| Feedstock | 100% recycled |

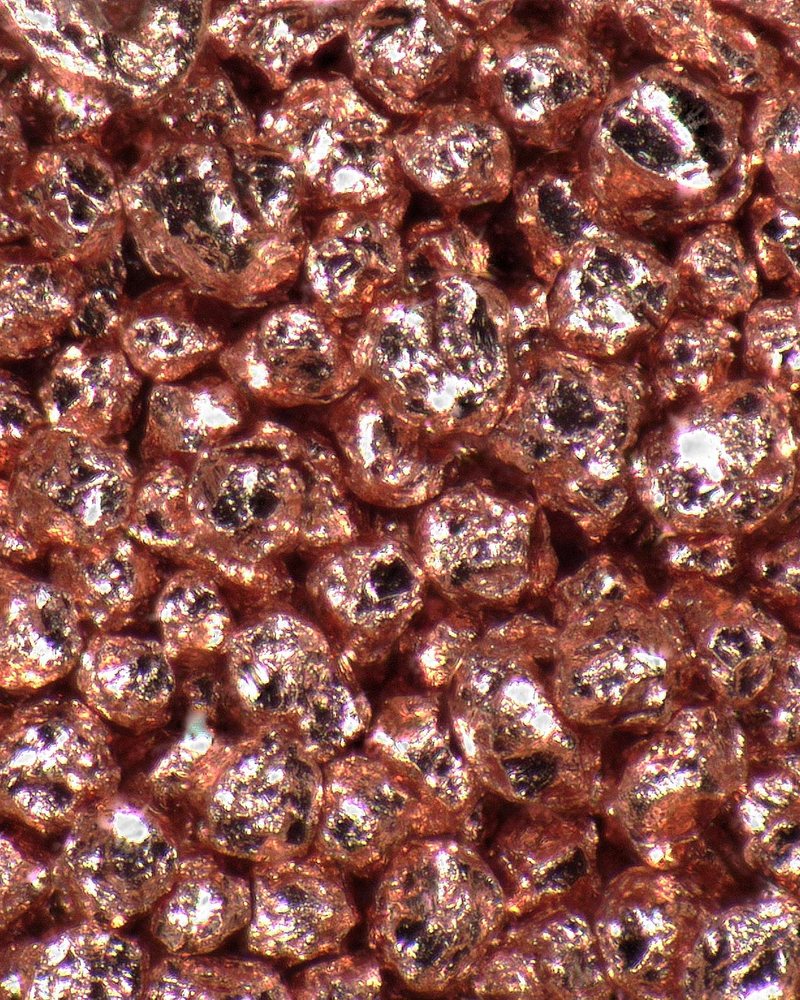

FCP-EBM
Coarser spherical powder suited to electron-beam processing.
Tailored to the larger beam spot and vacuum environment of electron beam melting, FCP-EBM balances flowability with reduced fines for stable powder-bed spreading.
Applications: EBM of copper components, high-conductivity parts
| Particle size | 63–100 µm |
|---|---|
| Sphericity | >0.9 |
| Apparent density | ~5.1 g/cm³ |
| Copper content | >99.9% |
| Feedstock | 100% recycled |

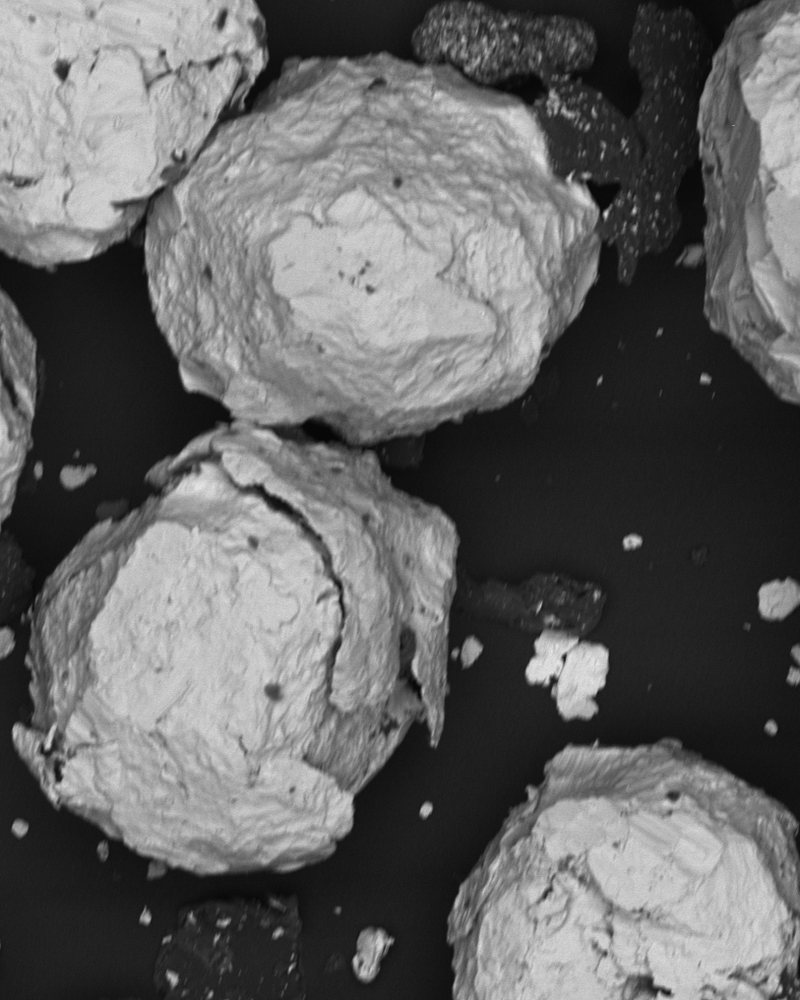

FCP-Si
Engineered for spark plasma and pressureless sintering.
FCP-Si is tailored to direct consolidation via spark plasma sintering (SPS) or pressureless sintering routes, reaching high density without a separate pressing step.
Applications: SPS-consolidated parts, pressureless-sintered components, functional structures
| Particle size | 45–150 µm |
|---|---|
| Sphericity | >0.9 |
| Consolidation route | SPS / pressureless sintering |
| Apparent density | ~4.0 g/cm³ |
| Green strength | 90 % of water-atomised powder |
| Flowability (Hall) | High |
| Copper content | >99.9% |
| Feedstock | 100% recycled |

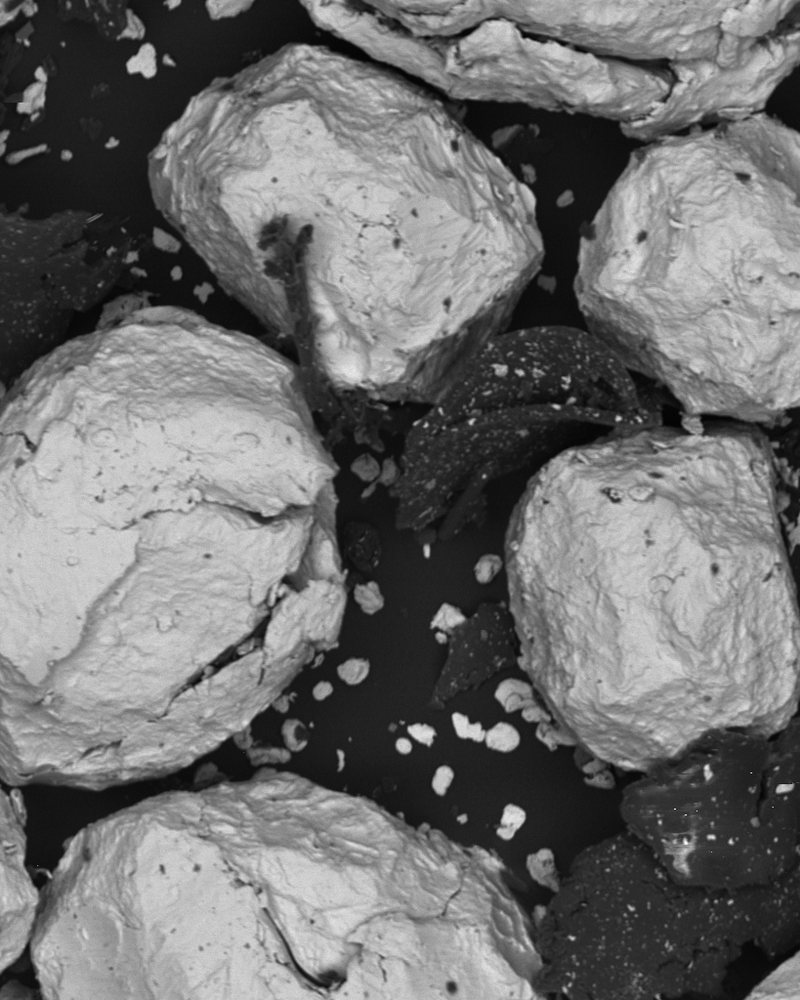

FCP-PM
Rough surface, built for green strength.
FCP-PM's rough particle surfaces interlock under pressure, giving strong green compacts for classic press-and-sinter routes — 90 % of the green strength of water-atomised powder in first trials. The broadest of the six grades, for general powder-metallurgy use where a tight process-specific cut isn't required.
Applications: Press & sinter components, bearings, structural parts
| Particle size | 20–150 µm |
|---|---|
| Sphericity | >0.9 |
| Morphology | Rough, spheroidal |
| Apparent density | ~2.6 g/cm³ |
| Green strength | 90 % of water-atomised powder |
| Copper content | >99.9% |
| Feedstock | 100% recycled |
